Virtual Filesystem (VFS)

All tool operations are mediated through a Virtual Filesystem (VFS) layer inspired by FUSE.

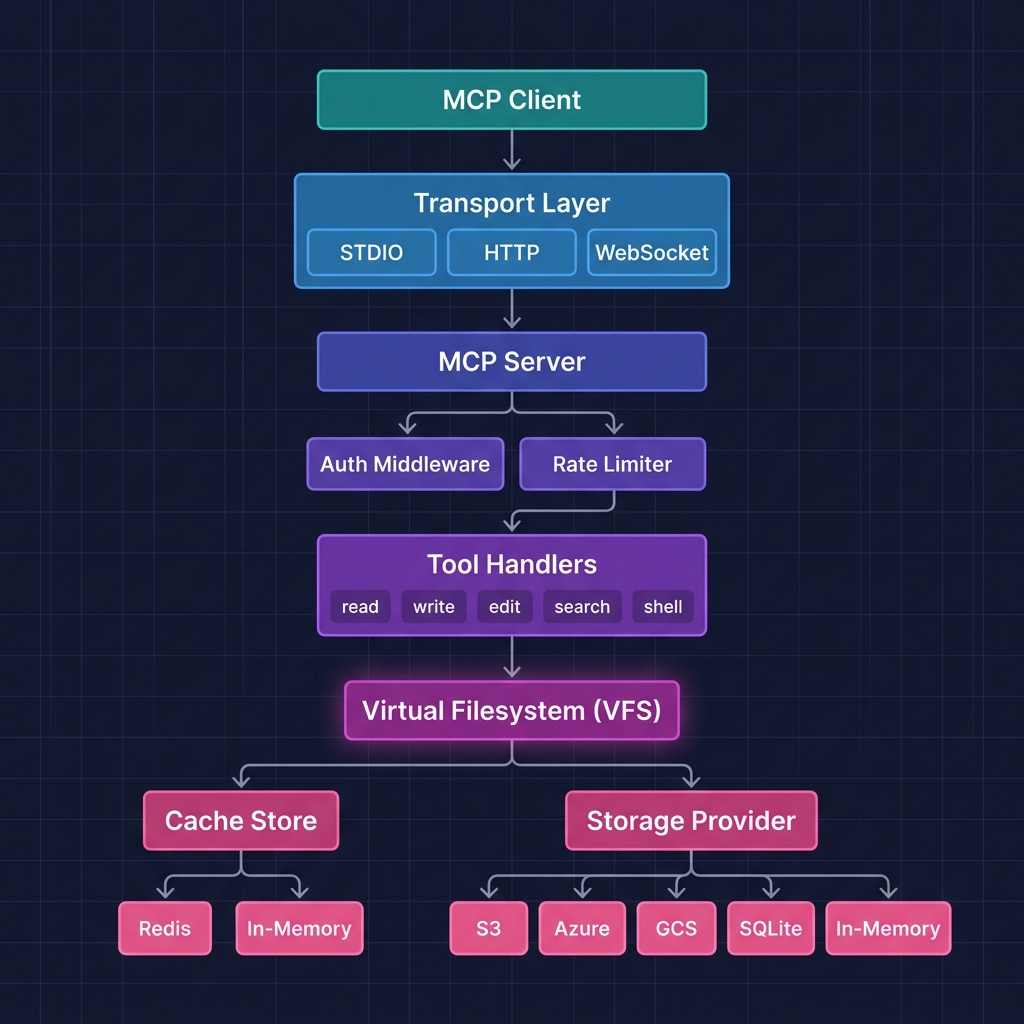

Architecture Overview

The VFS sits between the tool handlers and the underlying cache/provider layers, providing immediate write visibility and FUSE-like cache coherence.

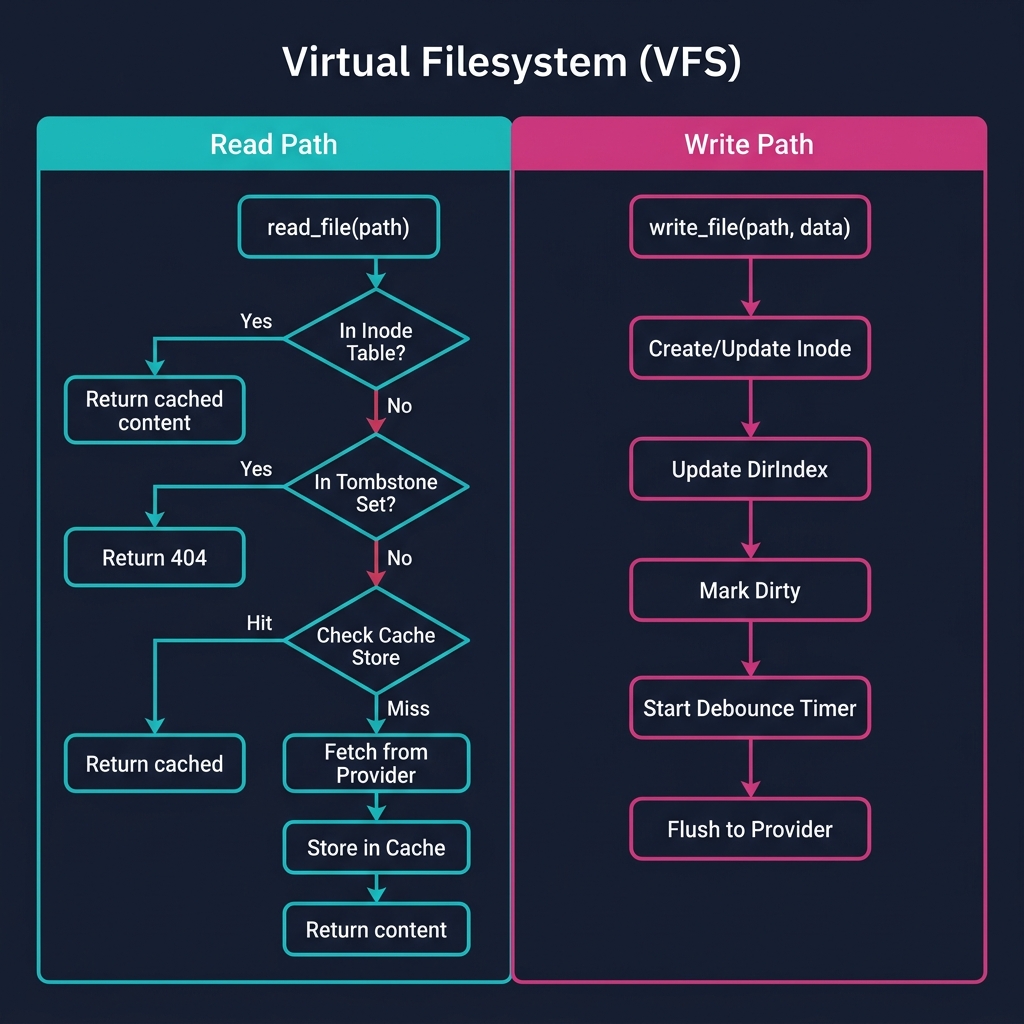

Read/Write Flow

Operation Resolution

Operation	Resolution
get()	Cache hit → return. Tombstoned → throw. Else → provider fallback.
stat()	Inode overlay → cached content size → provider headObject.
list()	Provider listing – tombstones + overlay dirIndex entries.
put()	Cache set + markDirty + inode update + dirIndex. Immediate visibility.
remove()	Provider deleteObject + cache evict + tombstone. Immediate invisibility.

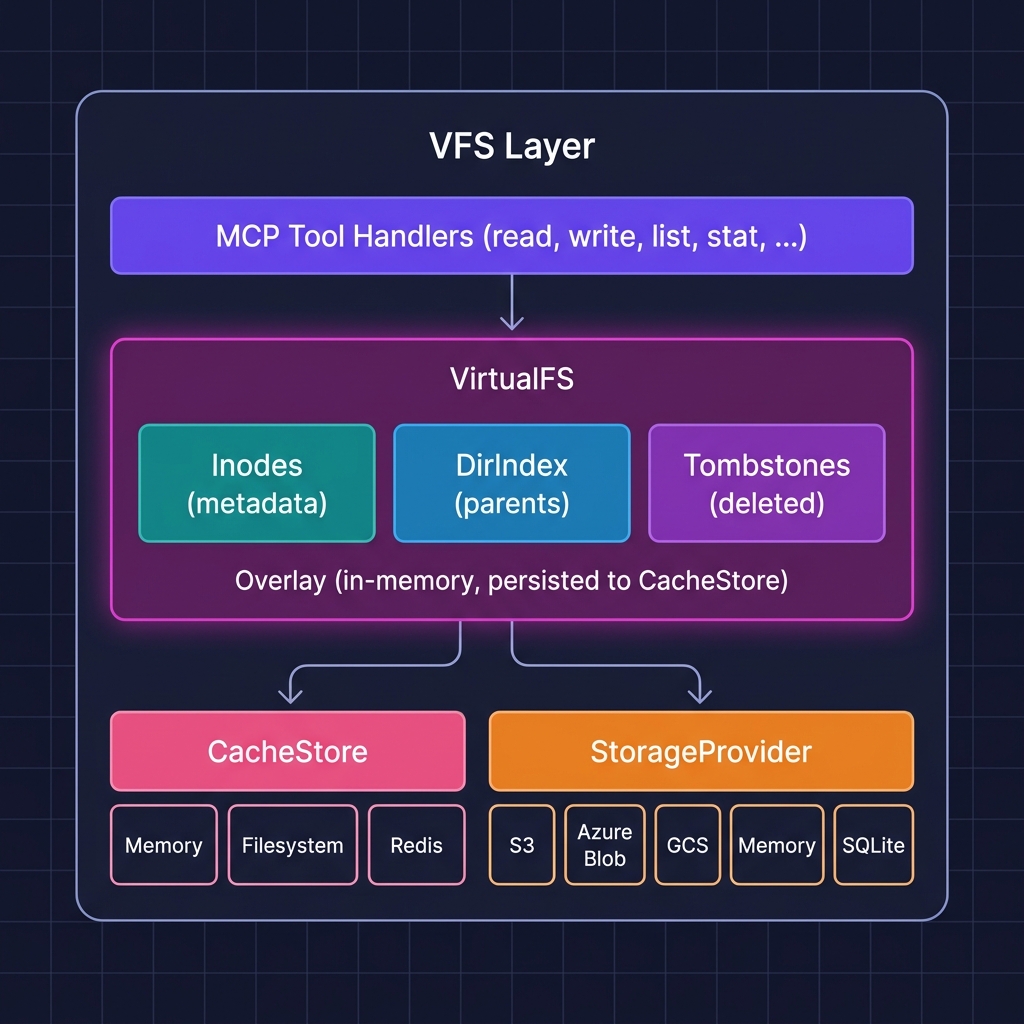

Key Components

Inodes

The inode table is an in-memory map of file metadata (size, timestamps, content hash). When a file is written, the inode is immediately updated — subsequent stat() calls reflect the new state without waiting for the provider flush.

DirIndex

The directory index tracks parent-child relationships. When a file is written to s3://bucket/a/b/c.txt, the dirIndex records:

• a/ contains b/
• a/b/ contains c.txt

This allows list_directory to return newly created files immediately, even before they're flushed to the provider.

Tombstones

When a file is deleted, a tombstone marker prevents it from reappearing via provider listing or cache reads. Tombstones are cleared once the delete propagates to the provider.

ETags

Every put() operation computes a SHA-256 hash of the content and stores it as an ETag in the inode overlay. ETags enable optimistic concurrency control for multi-agent workflows:

• stat() returns the ETag for any file with a cached inode
• read_text_file includes the ETag in response metadata ([etag: <hash>])
• edit_file and patch_file accept an optional expected_etag parameter:
  • Matching ETag → operation proceeds normally
  • Mismatching ETag → conflict error with the current ETag returned
  • Omitted → backwards-compatible, no check performed

This allows multiple agents to safely coordinate writes without locking:

Agent A: read_text_file → gets content + etag "abc123"
Agent B: read_text_file → gets content + etag "abc123"
Agent A: edit_file(expected_etag="abc123") → succeeds, new etag "def456"
Agent B: edit_file(expected_etag="abc123") → CONFLICT! etag is now "def456"
Agent B: re-reads file, resolves conflict, retries

Persistence

VFS metadata is persisted to the CacheStore under __vfs__/* keys. On startup, VirtualFS.hydrate() restores state; corrupted data is silently discarded. This allows the VFS to survive process restarts when using a persistent cache backend (filesystem or Redis).

Write-Back Flushing

Dirty entries are flushed to the provider after a configurable debounce window (default: 2000ms). The vfs.flush() method is called on graceful shutdown to ensure no data is lost.
